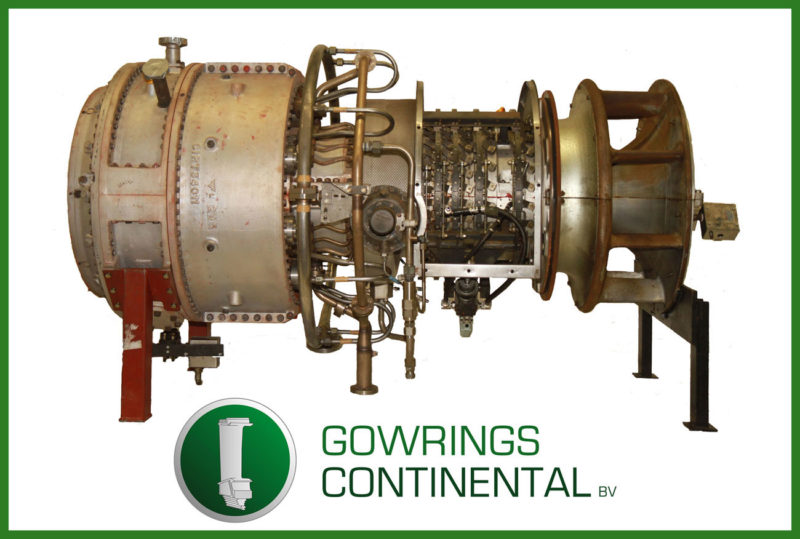

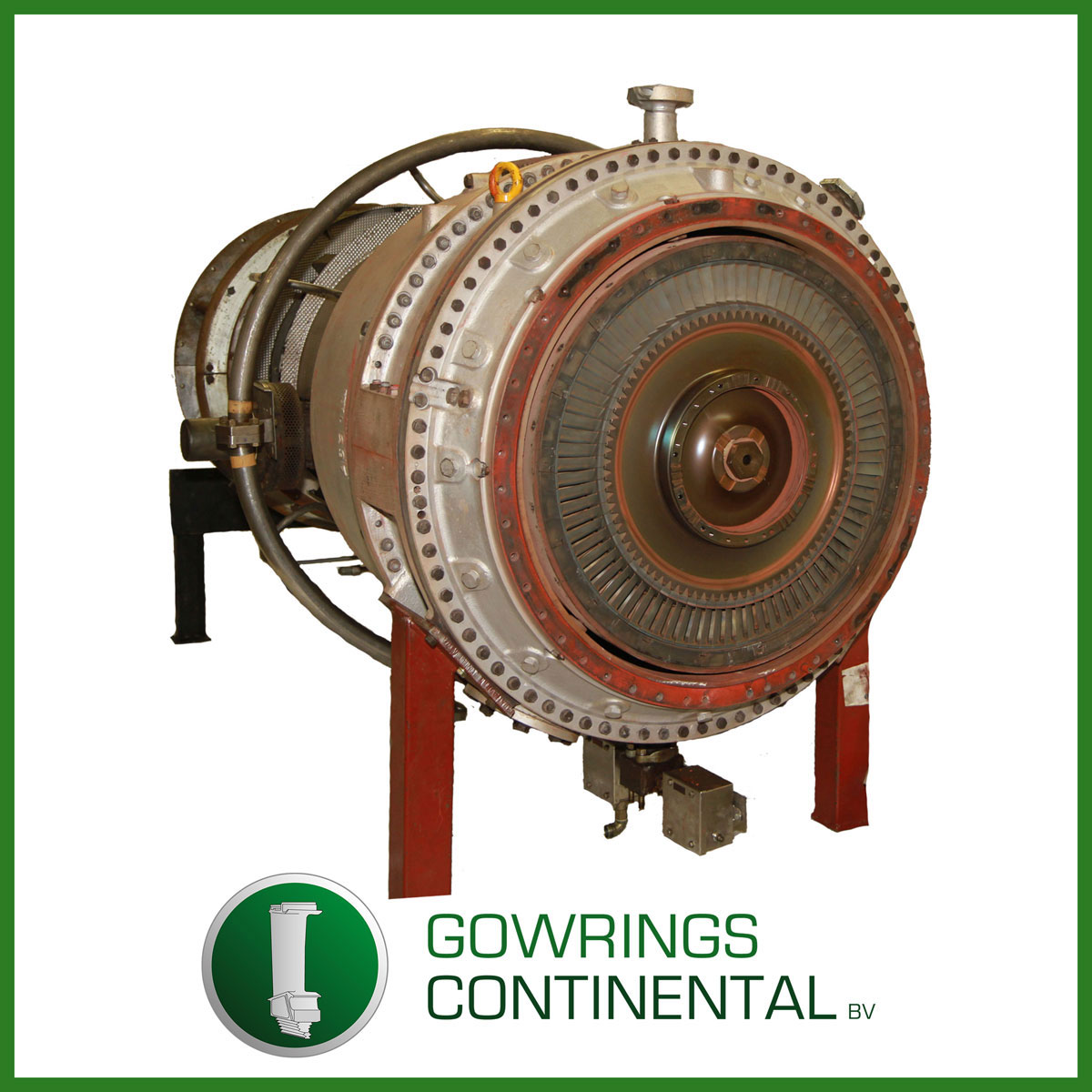

Siemens SGT200 Gas Generator RT134

Serial number:  RT134
Rating:                6.45 Mw as a single shaft unit | 9170 as a twin shaft unit
Fuel:                    Gas fuel
Combustion:      conventional combustion
Condition:          2500 Hours operated since โ€œCโ€ type overhaul

Description

S O L D

Serial number:  RT134
Rating:                6.45 Mw as a single shaft unit | 9170 as a twin shaft unit
Fuel:                    Gas fuel
Combustion:      conventional combustion
Condition:          2500 Hours operated since โ€œCโ€ type overhaul

General description

This unit was inspected and overhauled to EOM standard and has operated 2500 hours reliable since overhaul. It has been replaced due to a DLE retrofit of the installation.

The following items were at least replaced during the C type inspection:

  • Fully overhauled and newly coated compressor rotor assembly
  • New CT 1 rotor blades
  • New CT1 rotor disc
  • New CT 2 Rotor blades
  • New CT2 rotor disc
  • CT1 stator blades
  • CT2 stator segments
  • Flame tubes and transition ducts suitable for normal inspection interval
  • All other  components were inspected to be suitable for a full 54.000 fired hours operating cycles when maintained to the OEM standards.

Documentation of above overhaul available.
